Product Introduction

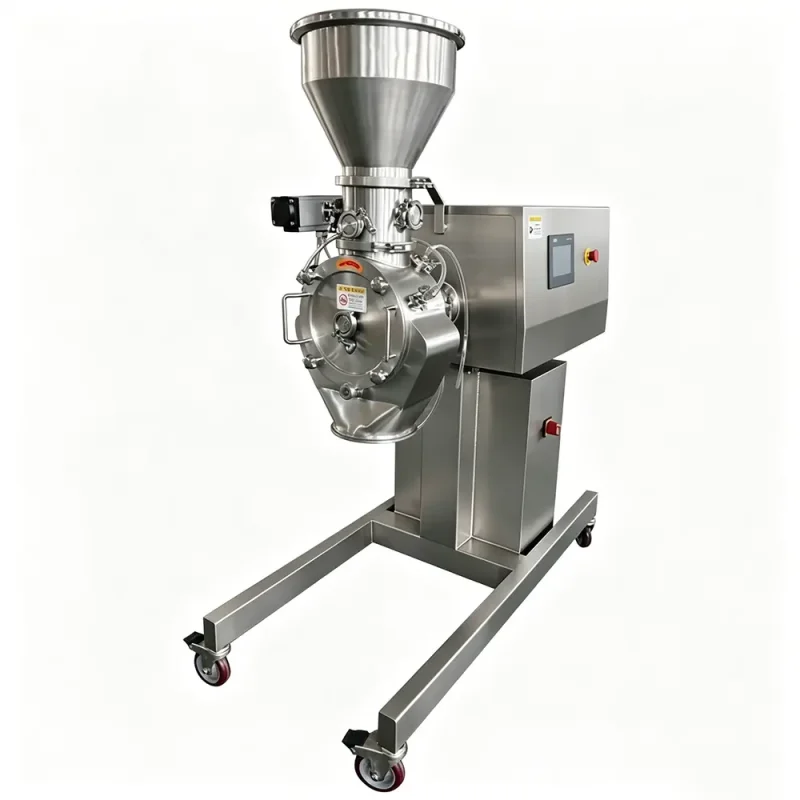

HM Series Fitzmill Type Powder Comminuting Mill

Name: HM Series Fitzmill Type Comminuting Mill
SKU: 0

– Micro-negative Pressure Discharging Ensures Dust-free Operation

– Efficient for Sugar, Salt & Pharmaceutical Processing

– Matches the Performance of Frewitt Hammer Mill

Guibao Group – China's No. 1 Manufacturer of Communiting Mills Since 1984

Ideal for Grinding Sugar, Salt, APIs, and Crystalline Materials. GMP-Compliant Pharma & Sugar Salt Powder Grinding Mill – 99.9% Yield, Zero Dust, 24hr Quote

Our HM Series Fitzmill-Style Comminuting Mill offers a professional, food-grade solution for ultra-fine grinding of crystal sugar and salt. It features an advanced Water/Air Dual Cooling System to ensure precise low-temperature control, preventing heat-sensitive materials from melting or sticking. Integrated with a dust-free feeding station, the equipment achieves fully enclosed operation, eliminating cross-contamination and fully complying with GMP regulations for maximum process safety and efficiency.

Key Advantages: Why Choose Guibao Fitzmill Comminuting Mills?

Feature	Benefit / Solves Pain Point
1. Fully Hermetically Sealed & Dust-Free Operation	The discharge can be hermetically connected to PE bags or stainless steel barrels. Eliminates cross-contamination and fully complies with GMP regulations for maximum process safety and efficiency.

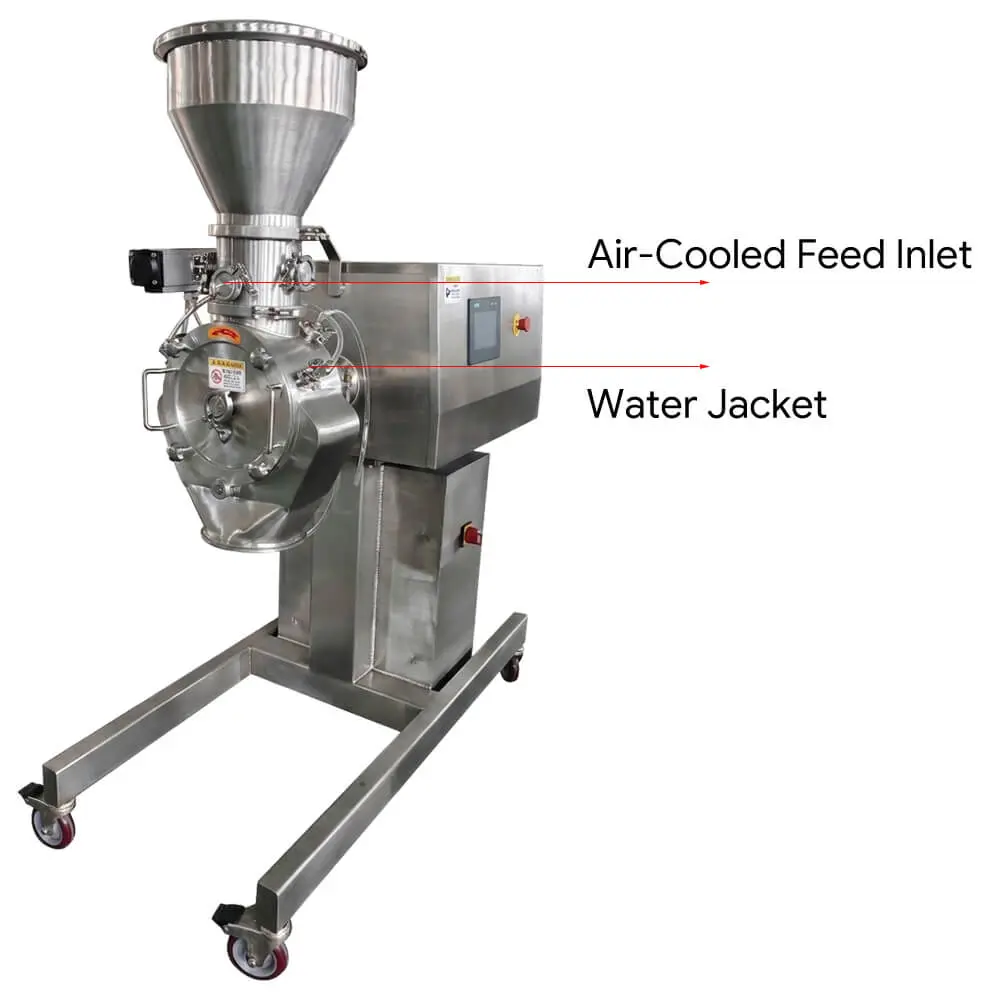

2. Low-Temperature Grinding Performance	This Impact Mill has much lower grinding temperature rise than traditional grinders, offering water/air cooling/liquid nitrogen options. Prevents heat-sensitive materials like icing sugar from melting or sticking.

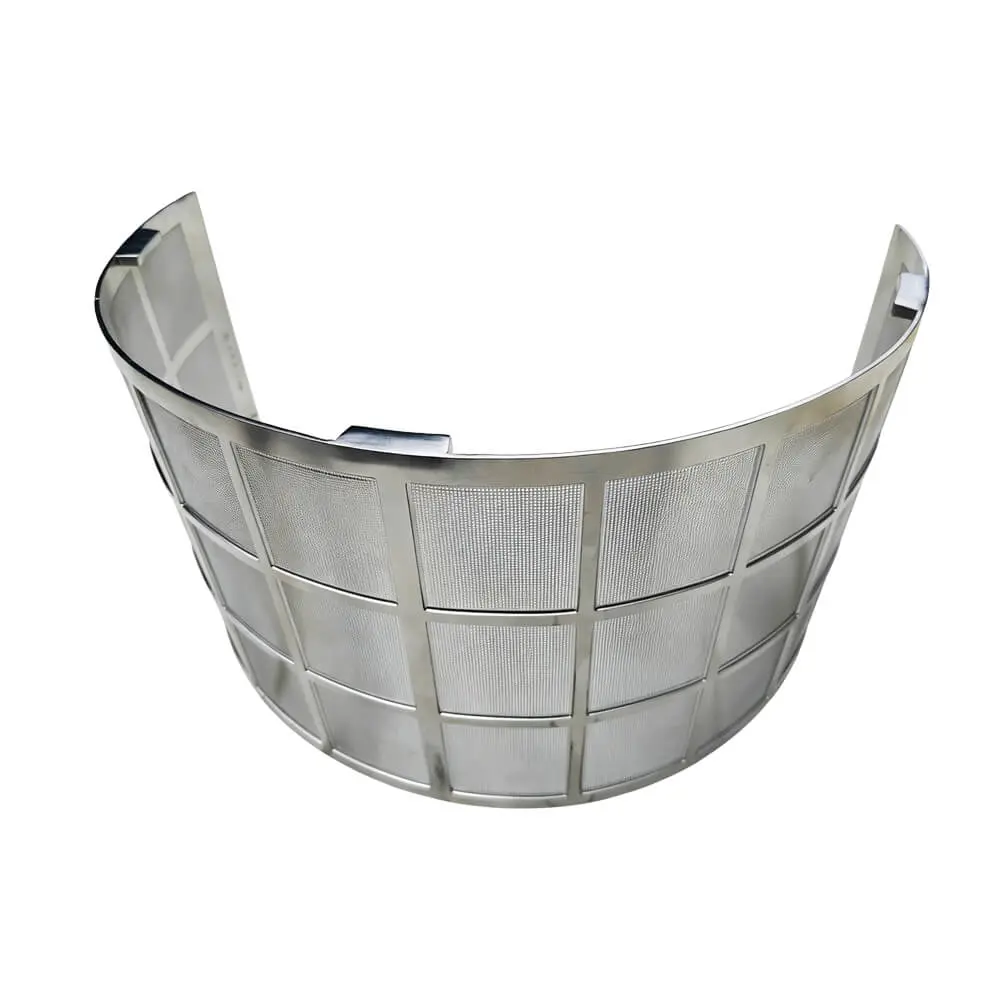

3. Enhanced Screen Efficiency	The effective area of the screen is larger, and the mesh hole rate is more than 30% higher than that of traditional screens. Ensures efficient material processing and reduced downtime.
4. High-Speed Operation & Low Noise	Direct drive of the motor with low noise. The rotational speed of HM-500 hammer mill is as high as 8000 rpm. Maximizes throughput while maintaining a quiet working environment.

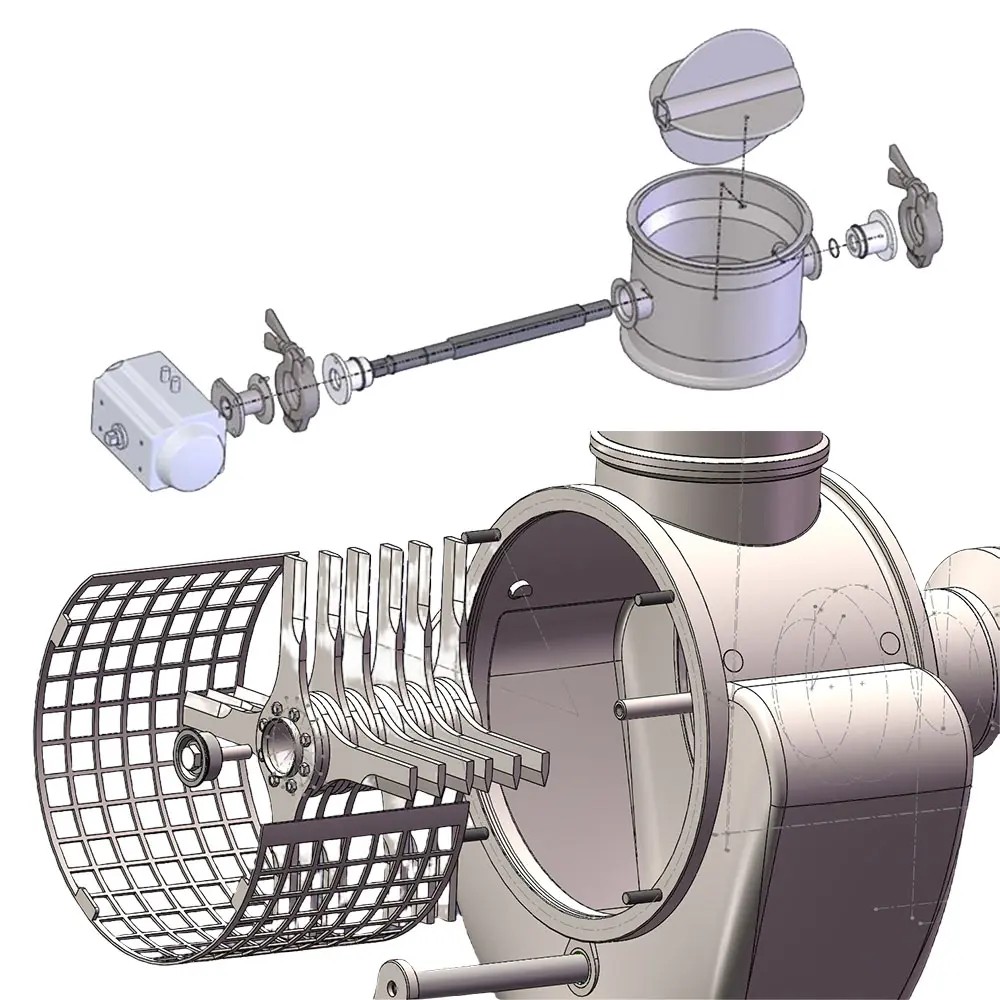

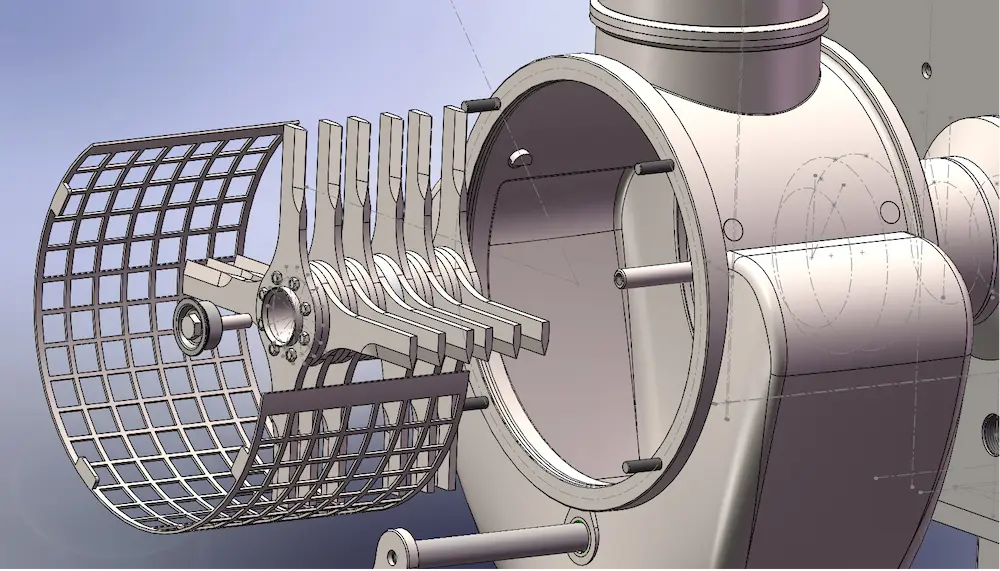

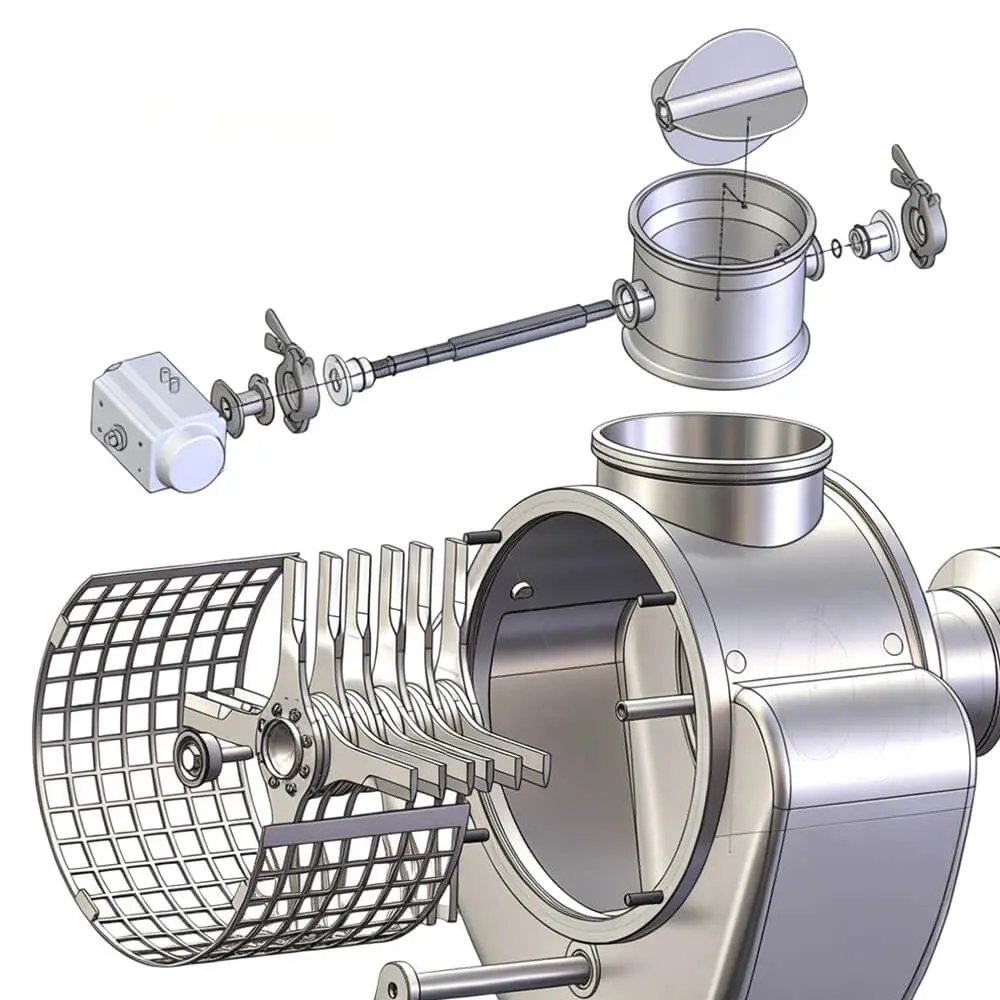

5. Easy Maintenance & Hygiene Compliance	The practical clamp connection design enables the cavity part of the equipment to be easily disassembled and separated, complying with WIP and SIP standards. cavity is polished, ensuring cleaning is very convenient.
6. Advanced Sterilization Capabilities	This Fitzmill-style Hammer Mill supports online cleaning and sterilization, and the machine head can withstand steam sterilization at 2.2 bar. Ensures maximum hygiene standards for pharmaceutical applications.
7. Material Quality Assurance	The materials in contact with the materials are all made of 316L stainless steel, which fully complies with the GMP standards. The material yield is 100% without any loss.

Application Fields

1. Pharmaceutical Industry

API Grinding & Containment Mill Solutions, Specialized for API grinding machine needs, our containment mill design prevents cross-contamination – proven for 40+ years.

2. Food Industry

Dust-Free Powder Micro Pulverizer Technology for Sugar, Salt & Food Powder, Our dust-free powder micro-pulverizer, also referred to as an icing sugar powder making machine, effectively eliminates airborne particle emissions during sugar pulverization.

3. Chemical Industry

Applicable to most crystalline materials. Ensures consistent quality and particle size distribution for chemical processing applications.

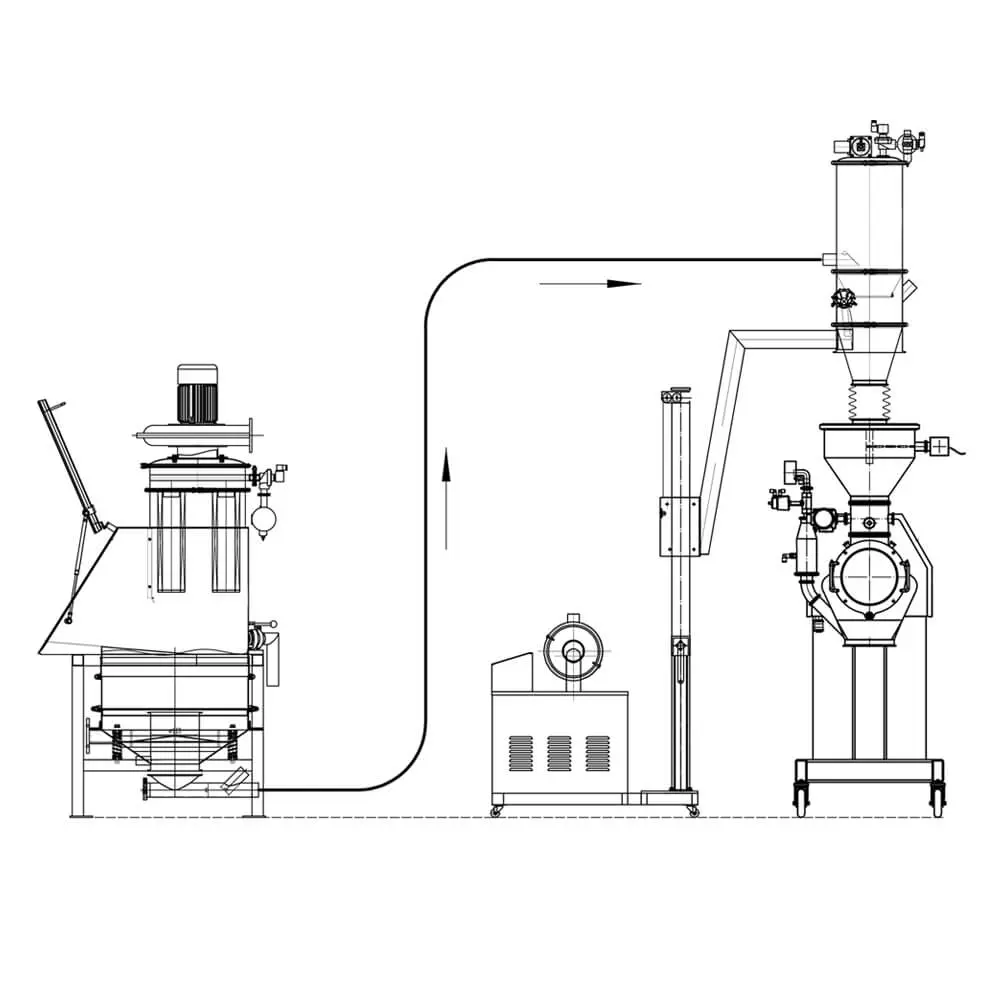

Examples of Dust-Free Sugar Powder Grinding Systems

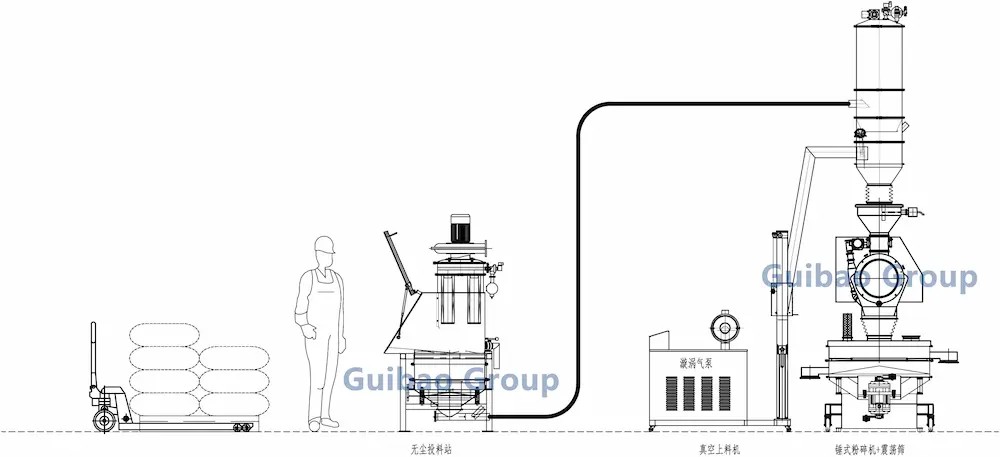

Process: Dust-Free Feeder - Vacuum Conveyor - Comminuting Mill - Vibrating Screen

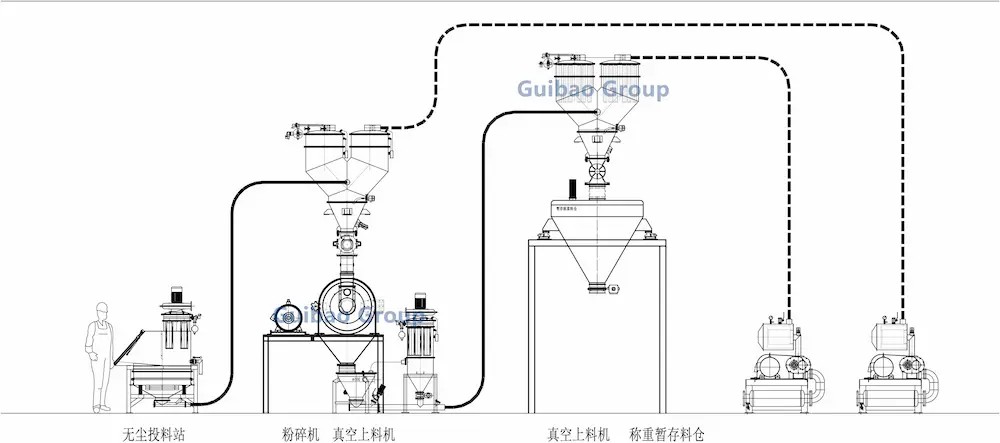

Process: Dust-Free Feeder - Vacuum Conveyor - Universal Grinder - Vacuum Conveyor - Weighing Buffer Hopper

Trusted by Industry Leaders

Jiangsu Hengrui Pharmaceuticals Co., Ltd.
(Material: API)

Guangdong Beary Foodstuff Co., Ltd.
(Materials: White Granulated Sugar, Salt)

IVC Nutrition Corporation
(Materials: Sugar, Vitamin)

Planddo Co., Ltd.
(Materials: Freeze-Dried Food)

Hengsuo Huawei Electronics Co., Ltd.
(Material: Resin)

Nantong Changhai Food Additives Co., Ltd.
(Material: Aspartame)

Too many customer cases to display here – Email us for detailed solutions.

FAQ

Q: What's needed for a detailed hammer mill quote?

A: Material to be crushed, feed particle size, discharge particle size, and capacity in kg/h.

Q: What's the warranty?

A: 1-year warranty on the entire machine, excluding wear parts.

Technical Parameters

Model	Power	Rotational Speed	Capacity	Discharge Fineness	Outline Dimensions(mm)
Model	kw	rpm	kg/h	μm	A	B	C	D
HM-Lab	2.2	3000~24000	50g~120kg/h	10~300	878	454	758	-
HM-200	2.2	1000~12000	500g~240kg/h	30~300	1100	650	1450	730
HM-500	4	1000~6000	50~800kg/h	50~300	1200	660	1630	730
HM-500(H)	3.7	1000~8000	50~800kg/h	20~300	1200	660	1630	730
HM-700	7.5	500~6000	50~2000kg/h	50~300	1440	790	1850	820
